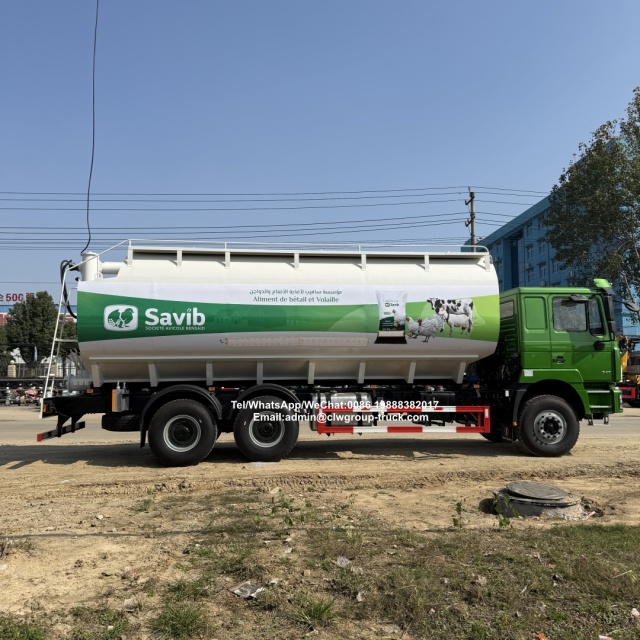

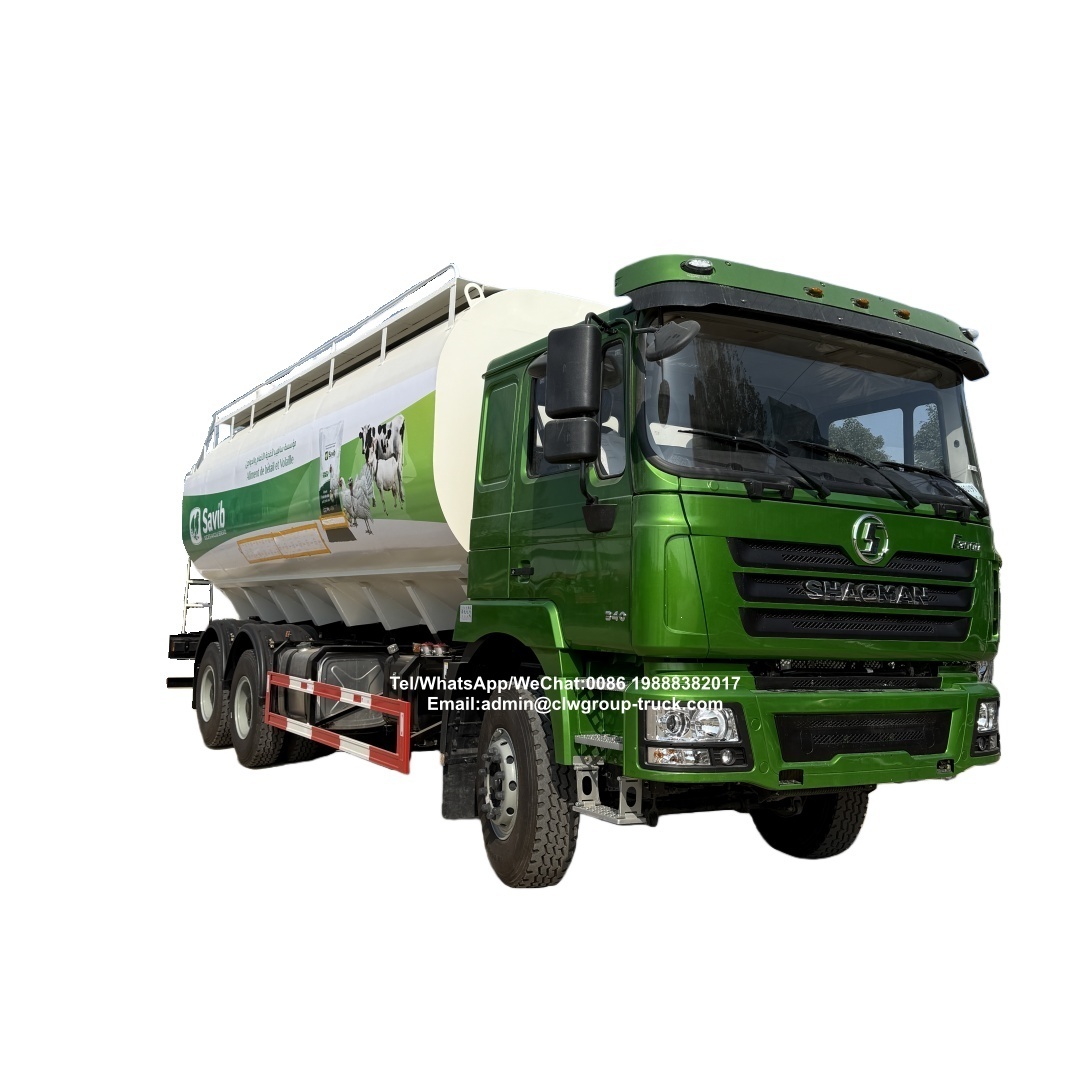

Shacman 6x4 15tons electric control grain auger livestock bulk feed delivery truck

The Shacman 6X4 32 cubic meter bulk feed truck is 9 meters long and can carry 15 tons of feed. It can transport grains, feed, granular medicines, and other media. It features a top feed inlet and a bottom-mounted auger conveyor system and pneumatic compartmentation system, enabling fully automated loading and unloading, significantly improving production efficiency. The fully enclosed transport environment protects against dust, rain, and direct sunlight, minimizing spoilage.

Advantages of the feed truck:
① Customizable: The feed tank can be divided into two to four compartments to accommodate different feeds. The flexible and convenient control structure allows for easy selection of compartments and control of material output.
② Fully Intelligent: The entire unit consists of a horizontal auger, vertical auger, lifting auger, hydraulic push rod, anti-reverse electrical control, and the main body. The structure is simple and reliable, and operation is convenient and flexible. Continuous operation is possible, greatly improving labor productivity.
③ Environmentally Friendly: The fully enclosed transport environment reduces spoilage factors.

Working principle of bulk feed transport truck: Electric auger, using 380V external power supply, tank body is welded from cold rolled steel plate, tank volume of various tonnage can be made according to user requirements, tank volume can be 10-40 cubic meters. The bulk feed compartment is divided into compartments, some are divided into two compartments, some into three compartments, and some into four compartments, in order to make it more convenient for users to use, and can transport several different feeds at the same time.

Bulk feed truck is also called animal feed truck, feed delivery truck, feed tanker vehicle, feed tank truck, feed transport truck, bulk feed transport vehicle, bulk feed delivery truck, bulk feed transporter truck, etc

Bulk feed truck introduction:

Bulk feed transport vehicleis a special transport vehicle made of high-quality, high-strength steel plate welded forming tanks and equipped with electric or hydraulic auger unloading system on the basis of various types of trucks or second-class chassis.
Bulk feed truck consists of the chassis, the loaded feed tank, the discharge auger system and the electro-hydraulic operating system.
Bulk feed transporter tanks are welded with high-quality steel plates. Different bins can be loaded and unloaded at the same time. Electro-hydraulic auger unloading saves manpower and time, convenient loading and unloading, less residue and beautiful appearance.

The advantages of bulk feed trucks
1. Save costs without using bags or manual loading and unloading, greatly reducing labor and time, and improving factory revenue and efficiency
2 bulk feed trucks can be divided into compartments according to customer requirements and can transport various types of feed. According to different customer requirements, the feed box can be divided into multiple small compartments, which can transport different types of feed or expansion media simultaneously (such as solid feed, granular feed, forage, soybean meal, grains, meat and bone meal, whey powder, oil, fish meal, miscellaneous meal)
Sealed transportation to avoid pollution, equipped with an automatic feeding system storage tower for bulk feed transport vehicles. Feed is directly fed into the tower, and the site design allows bulk feed transport vehicles to unload without entering the site, thereby reducing potential pollution problems caused by external transport vehicles
Automatic feeding does not require manual feeding. Hydraulic pellet feed truck, achieving fully automated operation, can automatically feed into the groove at fixed time and quantity.
5. The hydraulic system is easy to operate, fully automatic hydraulic system, easy to operate and use. The chassis adopts a heavy-duty truck chassis, and the gear pump hydraulic motor adopts well-known Chinese brands and imported hydraulic components.


Chengli Special Purpose Vehicle Co., Ltd. Feed Truck Technology
Auger technology, intermediate connection support structure, graphite bearings, significantly improves the service life of Jiaolong compared to traditional iron bearings, maintenance free, ensures smooth operation of auger, reasonable Jiaolong clearance, pitch, speed, and reduces the crushing rate of feed
The tank process adopts strict welding technology to ensure the sealed transportation of the tank, reduce losses, and avoid pollution. The fully automatic loading and unloading can operate continuously, saving a lot of time and improving production efficiency
The welding process for the bulk feed truck tank is strictly in accordance with the welding process. The auxiliary beam and reinforced rib lights are all fully welded, ensuring the strength and sealing of the tank body
The painting process uses specialized corrosion-resistant paint, which effectively ensures that the paint does not peel off or crack under frequent disinfection conditions in the breeding farm

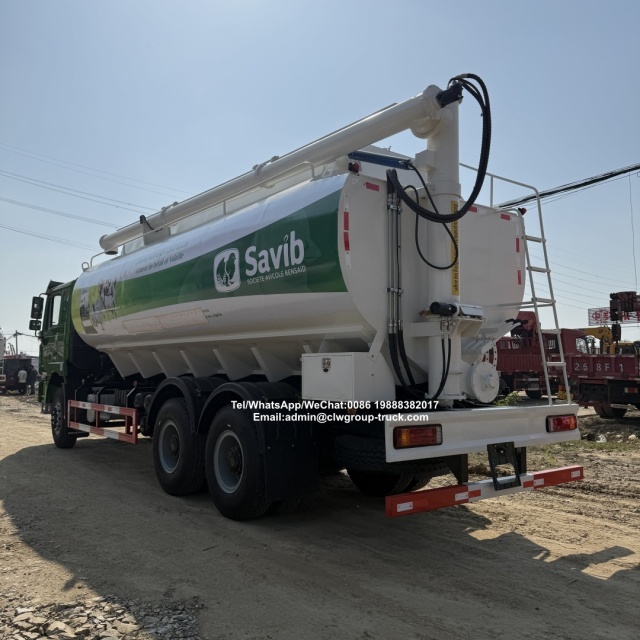

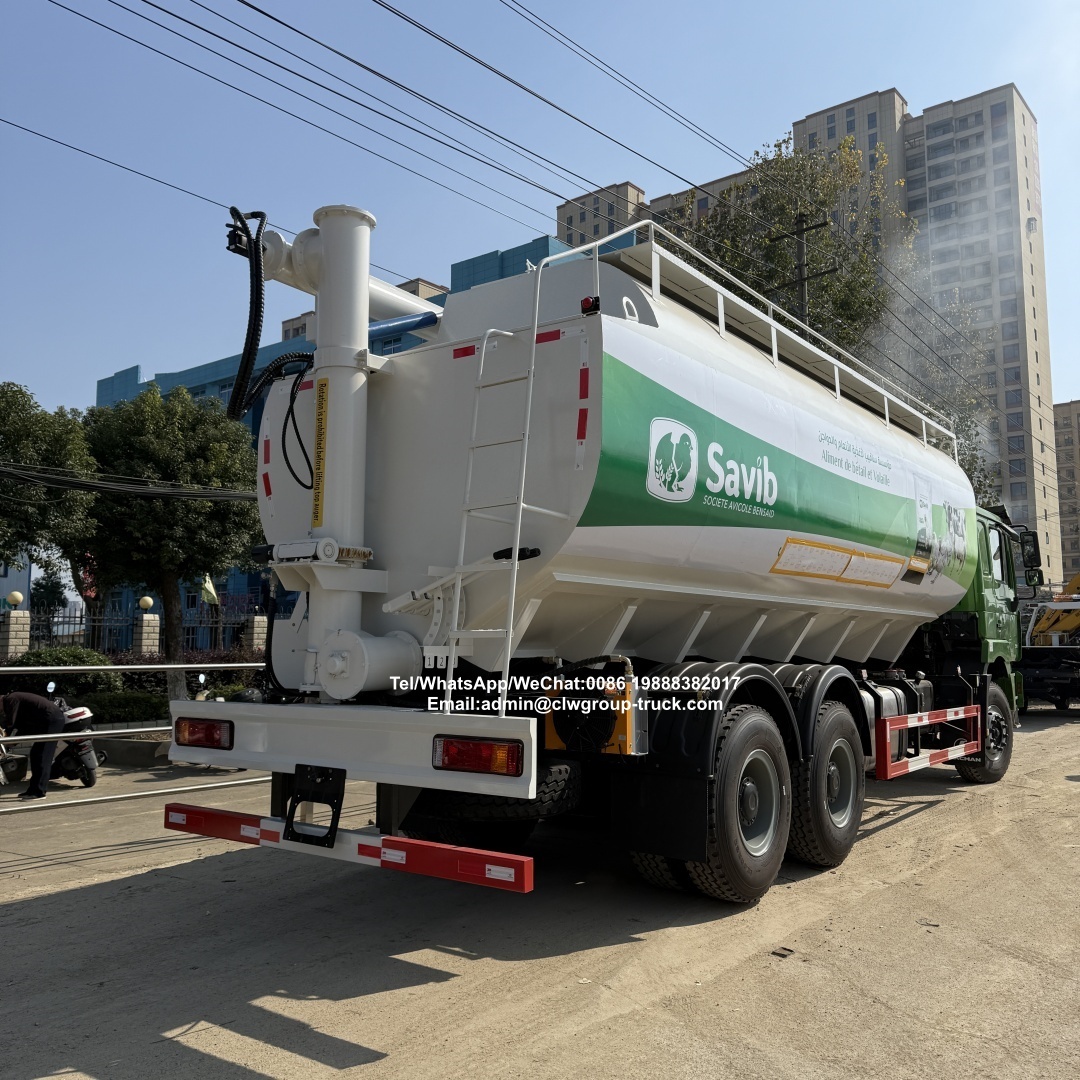

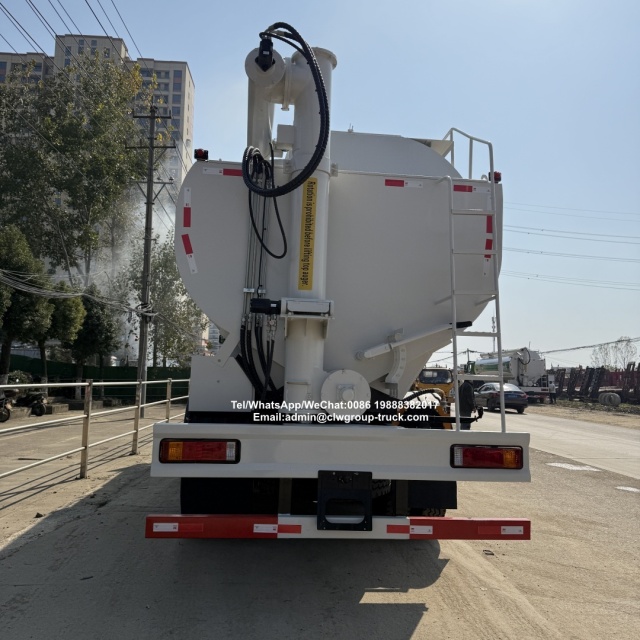

The rear ladder of the vehicle is installed at the rear of the feed truck, and the body ladder is made of stainless steel welding technology, which is sturdy and reliable
The top sloping roof design increases strength and is less prone to water accumulation. The walkway uses patterned boards for greater safety
Install an alarm on the bulk feed truck. When the feeding is completed, the lifting dragon will detach from the fixed position of the horizontal bracket, and the buzzer in the cab will sound to remind the driver to put the lifting dragon in its original position. Install a tail work light for more convenient night operation
Strict inspection is required, and each feed truck factory must undergo strict feeding testing before use. Professional thickness gauges, hardness testers, layer thickness gauges, torque plates, ultrasonic flaw detectors, and other effective testing equipment are used
