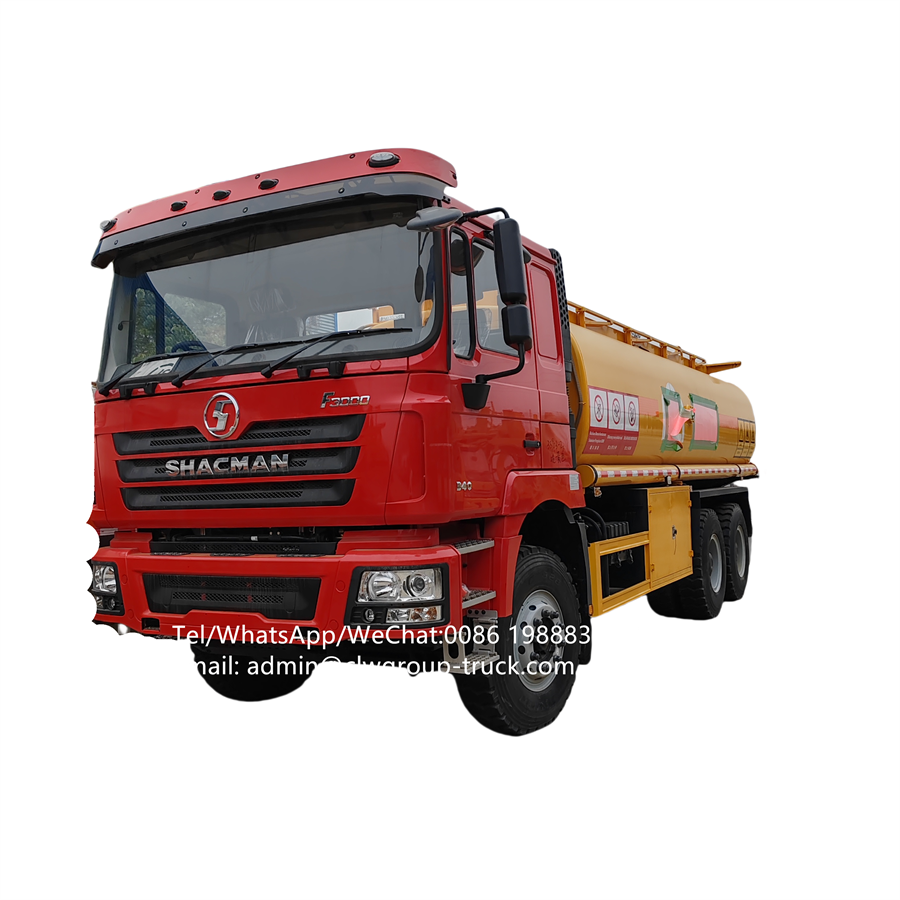

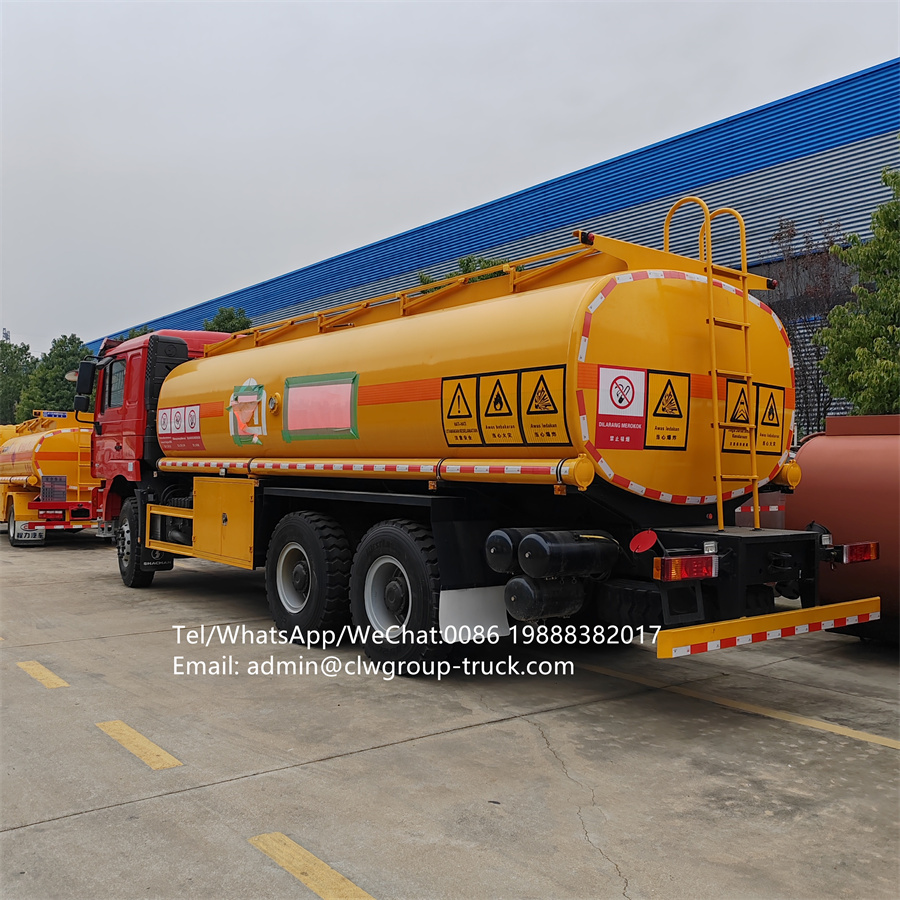

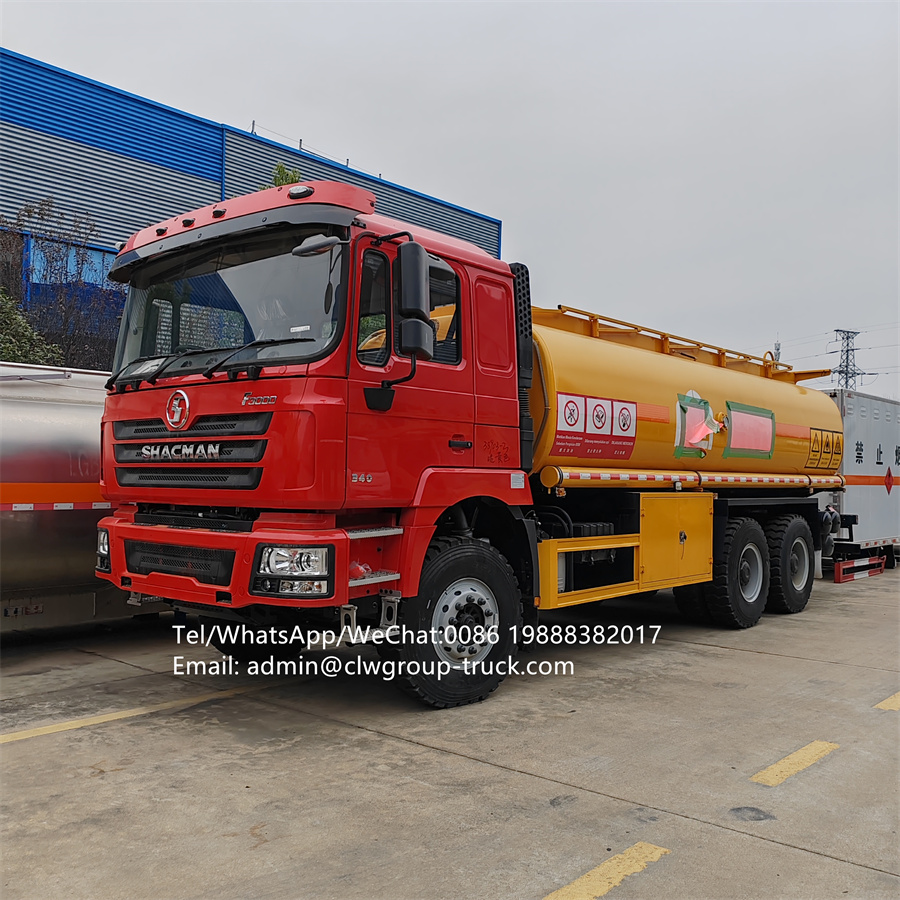

Shacman 6x6 6x4 22000l oil road tanker truck

The fuel truck is mainly used to transport oil, fuel, gasoline, diesel, etc. It can be equipped refueling machine and fuel pump to refuel for other automobile.

The shape of the oil tank is elliptical or rectangular and the material can be high quality carbon steel plate Q235 , stainless steel or aluminium alloy. Whole tank was divided into two compartments or more compartments with several inner baffles to reinforce the tank strength and prevent longitudinal surge during move.
In order to prevent corrosion, the surface of the tank was printed anti corrosion  paint and decorative paint. The middle side of the tank was equipped indicator which can indicate the filled oil volume when pump oil.
As a professional oil delivery trucks manufacturer, CLW brand fuel truck capacity is from 3000 liters to 45000 liters. Besides fuel transportation truck, CHENGLI factory also produce oil tank semi trailer and the tank volume is from 30000 liters to 60000 liters

1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
   2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
   4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda peroxide, alcohol, benzene, cooking oil and so on.
   5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
   6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
   7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

   1 Oil tank material: carbon steel,stainless steel , aluminum alloy material tank for choose.

   2 Transport medium: oil, product oil, edible oil, water, alcohol, etc.
   3 With multiple baffle plates in the tank, the tank has the advantages of high intensity, stability, transporting safety etc.
   4 Oil pump is installed to suck or discharge oil, with high suction pressure and speed.

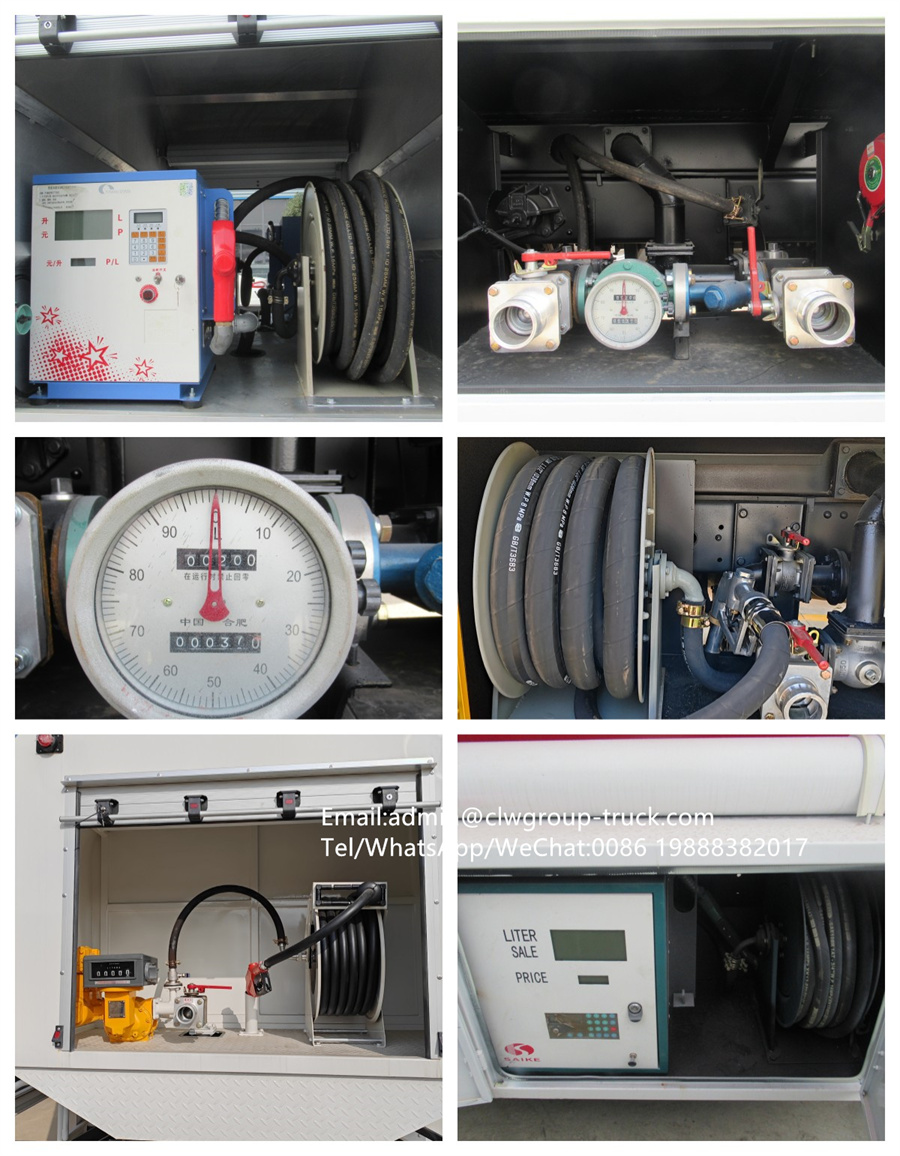

   5 Computer refueling machine is installed for your choice, with a 15 meter automatic return oil pipe and refueling gun, achieving mobile refueling fuction.
   6 According to users' needs, the tank can be designed as a single compartment or several compartments to contain different oils.

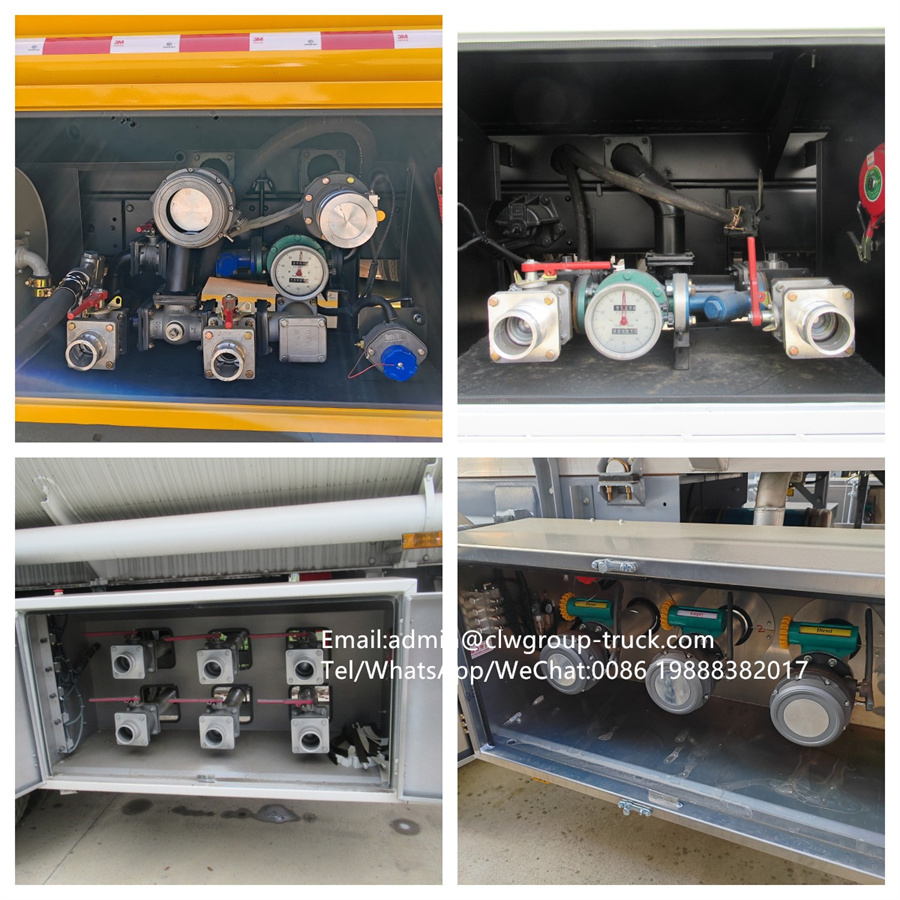

   7 According to users' needs, the side or the rear of the tank can be installed 1 to 3 self-flowing valves
