| Vehicle general | Overall dimension | 5995*2100*3400 mm |
| Gross/Kerb weight | 4495/4300 kgs | |
| Chassis | Brand | Sinotruk howo |
| Cabin | Single cabin .left hand drive or right hand drive | |
| Engine model/power | Yunnei engine 116hp | |
| Emission standard | Euro III or Euro IV Euro V or Euro VI | |
| Displacement | 3.8 L | |
| Transmission | 6 forwards 1 reverse | |
| Front axle and rear axle | front axle 2.4 tons rear axle 4.2 tons | |
| Wheelbase | 3300 mm | |
| Brake system | Air brake | |
| Tire | 7.00R16 | |
| Max speed | 98km/h | |
| Aerial truck height | 13-33m | |
| Fence walkway board | stainless steel fence ,aluminum alloy anti slip walkway board | |
| PTO | pneumatic power take off | |
| Working platform | 1600*700*1000 mm (the size of the basket can be customized according to customer's requirement) | |
| Arm form | Nice section fourteen sided synchronous telescopic arm | |
| Rotator | 360 continuous rotation | |
| Outrigger | Front V shaped rear V shaped three legged support,individually adjustable and synchronously extendable | |

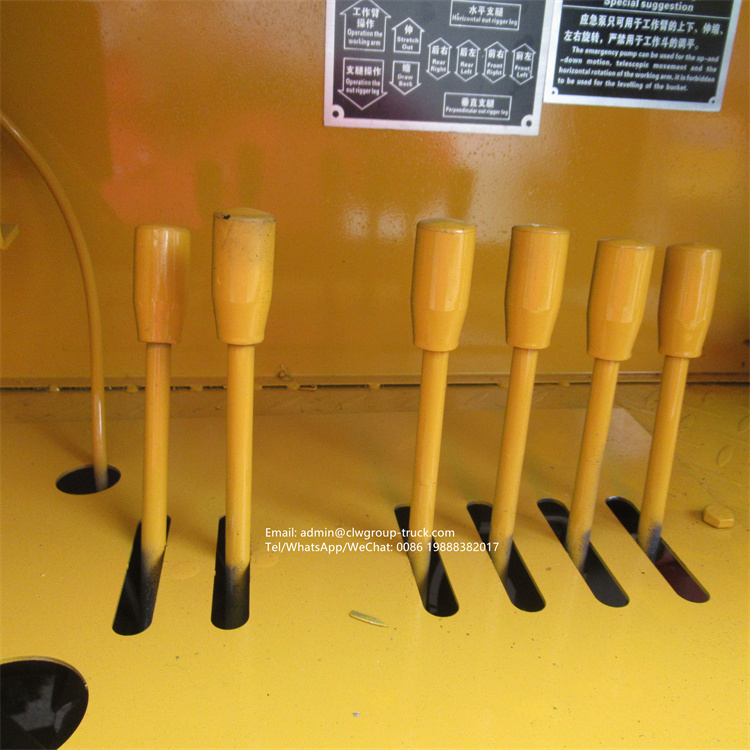

| Operate | fixed operation of the trunable ,wireless remote control box operation ,hydraulic handle operation of the vehicle .equipped with an electric emergency pump | |
| Leveling system | hydraulic automatic leveling | |
| Get and off automatic interlocking device | automatic realization of up and off interlock,prevent on and off the operation at same time to achieve safety protection | |
| Emergency electric hydraulic pump | sent the staff back to the ground when the chassis engine or hydraulic main pump fails face | |
| Emergency stop device | three emergency stop device to ensure that all operations are stopped an emergency | |
| Automatic limit | Ensure that the whole vehicle operates within a safe range of operation | |
| Engine ignitaion and flameout | the turnable and remote control box can ignite and flameout control of the engine | |
| Broken chain protection device | the balance mechanism is set to ensure the balance of the left and right wire rope | |
| emergency operation function | in emergency situations, restore the vehicle movement to ensure that personnel can be safely transport back to the ground in dangerous working conditions | |
Aerial work vehicle is also known as street light maintenance vehicle, high-altitude platform vehicle, bucket truck, street lamp maintenance vehicle, branch trimming vehicle, billboard installation vehicle, aerial truck, aerial platform truck, etc. It is suitable for aerial work in various systems such as municipal construction, electricity, street lights, advertising, photography, communication, gardens, transportation, industrial and mining, docks, etc. The working height is 8 meters, 12 meters, 14 meters, 16 meters, 18 meters, 20 meters ,22m,24m,29m,32m ,45m
Aerial work vehicle is a vehicle that sends staff to a height of 10 meters to 45 meters for operations such as high-altitude advertising shooting, high-altitude power repair, high-altitude washing, etc. , it adopts automobile chassis and is equipped with hydraulic outriggers, with safety guardrail, which can be operated up and down
telescopic platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m 28-45m Insulated cage is optional.
New Folding Arm Telescopic Arm Aerial Work Platform Heavy Duty Aerial Work Platform Hydraulic Lifting Platform Truck
The overall structure is made of high-strength steel plates, which is safe and reliable. It is equipped with adjustable hydraulic outriggers, with a large span and more stable; Equipped with manual control, electric control, remote control and other modes of operation, convenient and fast; It also has interlock, soft retreat protection, automatic limit of working height in dangerous environment and automatic emergency system to protect personnel safety and construction safety.
Telescopic Platform Truck (also called telescopic boom trucks, telescopic boom lifts, telescopic aerial lift, telescopic aerial truck, telescopic working platform, articulated telescopic aerial truck, articulated boom lift, articulated basket platform etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
28 30 32 34 36 38 45 meters High Altitude Aerial Working Platform Insulated Bucket Trucks
Aerial working platform (truck mounted), aerial telescopic platform, articulated telescopic extension boom, articulated platform, articulated basket platform.
High altitude work platform: High altitude work vehicle refers to a specialized vehicle that transports workers and equipment to the site for high-altitude work. High altitude work vehicles are divided into three categories: straight arm, curved arm, and vertical lifting. The heights of the homework truck are 18 meters, 21 meters, 28 meters, and 29 meters, respectively
high-altitude work vehicle adopts a folding curved arm structure, with a three section folding arm. The work platform and turntable are in dual working positions, with up and down operation, electro-hydraulic control, and can rotate 360 degrees. It has four hydraulic support legs, and the engine can be controlled to start and stop inside the work platform. The large arm is equipped with a winch hook system, and the lifting weight of the hook is ≤ 900kg. The manned work platform can bear a weight of 200kg. The steel toolbox and patterned anti slip walking platform are equipped with stainless steel fences.
The chassis hydraulic support leg balance system is equipped with a bidirectional hydraulic lock as standard, and the working arm oil cylinder is equipped with a bidirectional balance valve as standard. The working arm balance structure is an external balance rod.
The main components of the Chengli high-altitude work vehicle, including hydraulic cylinders, hydraulic oil pipes, hydraulic locks, balance valves, gear oil pumps, power take-off, and multi way valves, are all from well-known domestic brands. The vehicle's hydraulic system has smooth directional changes and flexible and convenient operation; The support legs are interlocked with the work arm, ensuring safety and reliability to prevent accidental operation; H-shaped legs have a large span and good stability. The legs can be independently extended and linked, and the rear legs are equipped with leg flashing lights, which are used to indicate the contour of the legs and emit light alarm signals during operation.
Safety configuration of straight arm aerial work vehicle
1 Automatic interlocking device for getting on and off the vehicle, used for interlocking on and off the vehicle to prevent the danger of misoperation
2 Manual emergency pump, when the engine and pump fail, the staff can be sent back to the ground through the emergency system to return to the driving state
3 Work platform emergency stop device for emergency stop operation and limit boom operation
4 Automatically limit the working range, when the working range reaches the specified value, automatically limit the work in the dangerous direction
5 Nighttime safety warning device, engineering strobe lights on the vehicle, LED lighting
Features and Advantages of Telescopic Aerial Work Vehicles
1 The whole vehicle is compact in structure, short in overall size, convenient in use and flexible in steering
2 The whole vehicle adopts a full electronic control system with multiple safety protection functions
1 Each leg has soft leg support
2 Outriggers are locked, when the boom is working, the outriggers are not allowed to operate (restricted action)

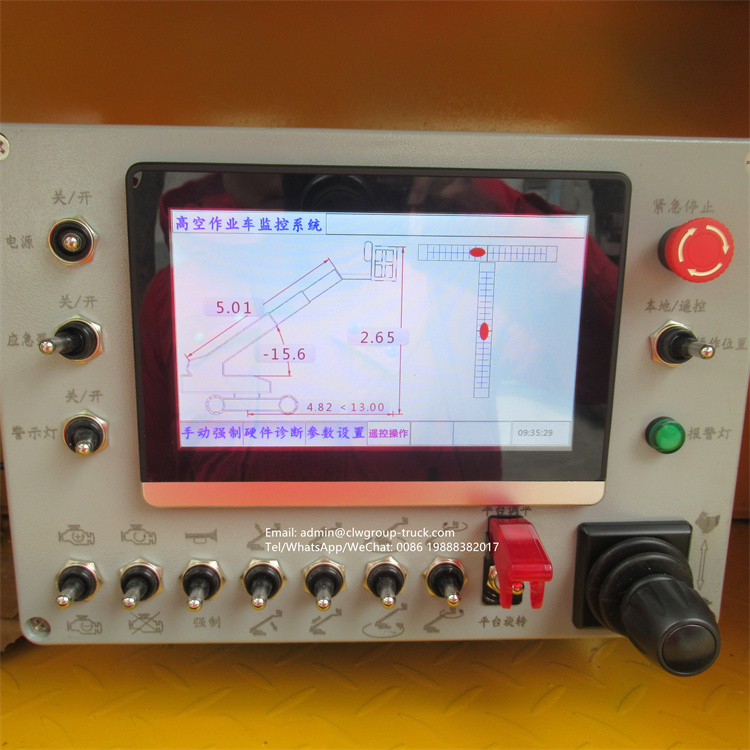

3 The body is equipped with a large-screen display, which can display the arm length, working height, working range, tilt angle, and real-time display of the working conditions of the whole vehicle
4 Equipped with a wireless remote control, the operation arm is protected when getting on and off the vehicle
