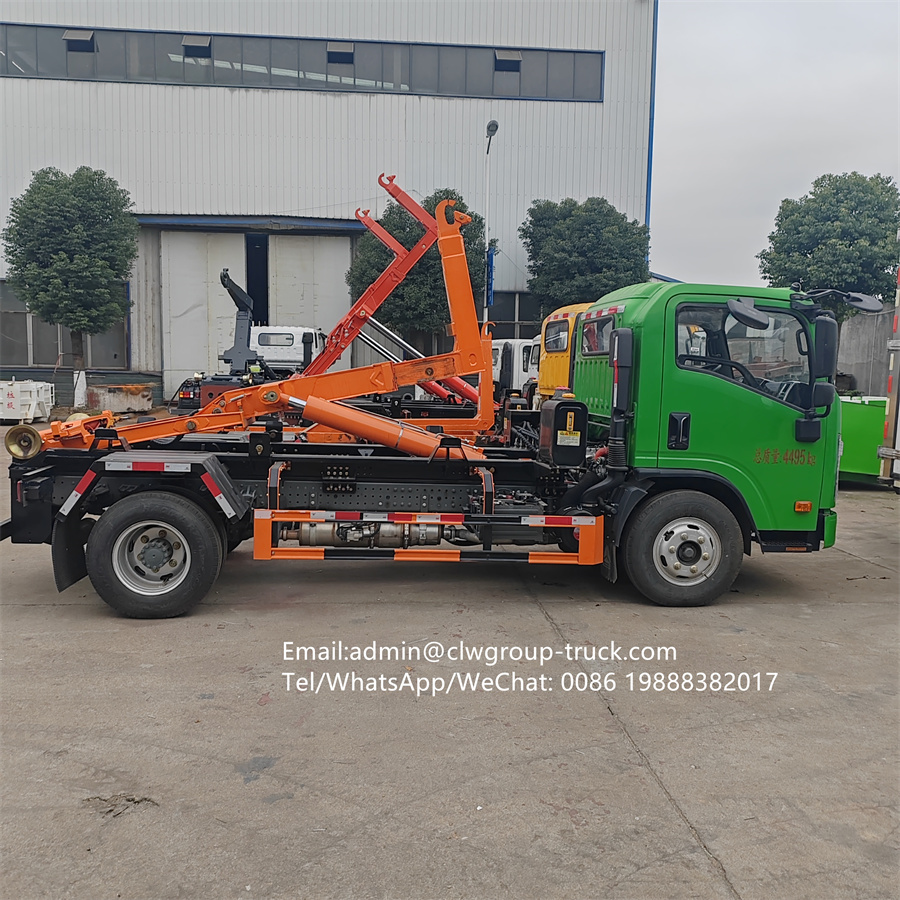

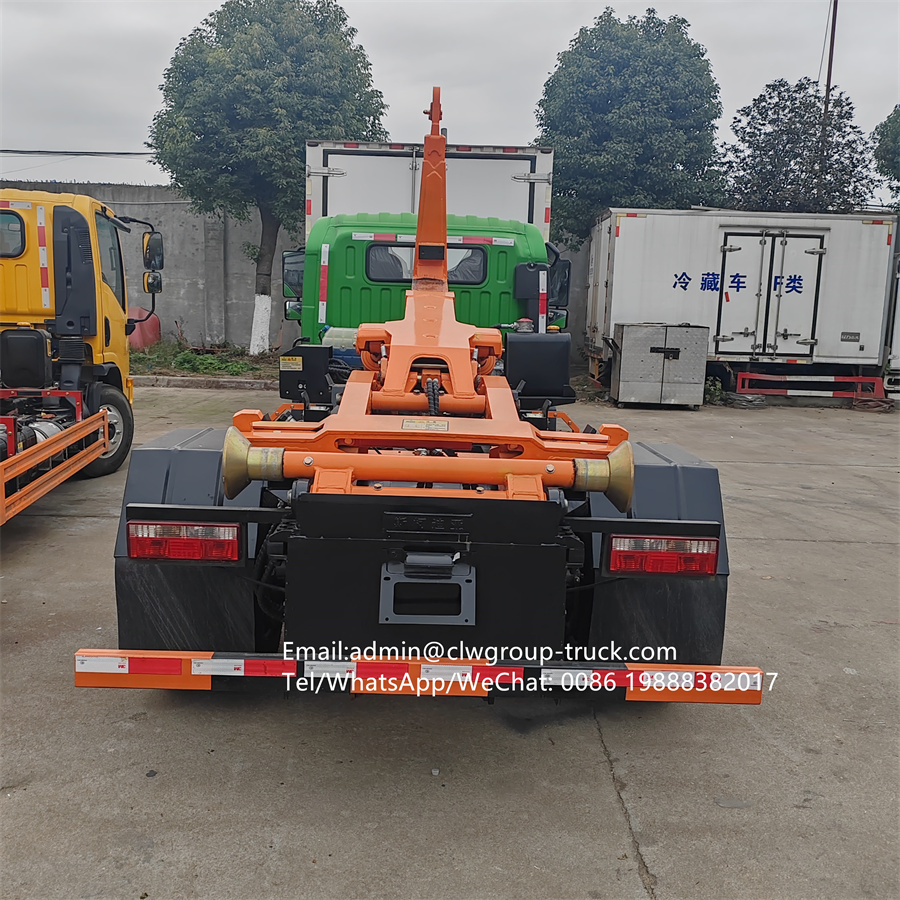

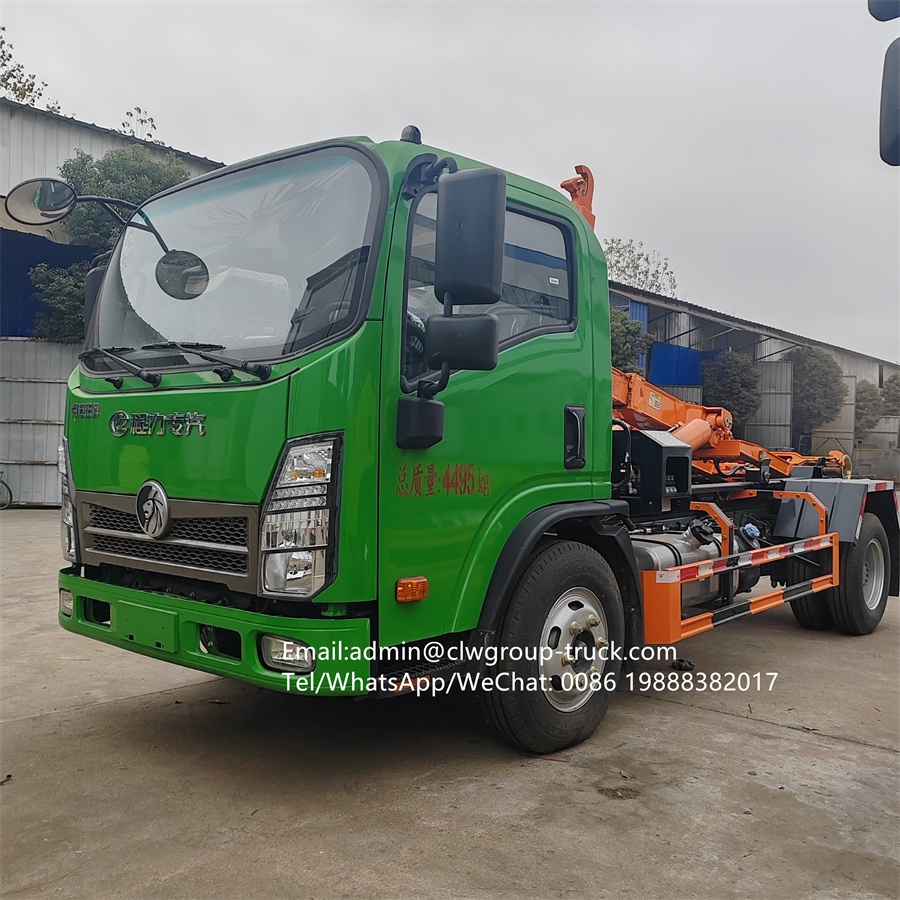

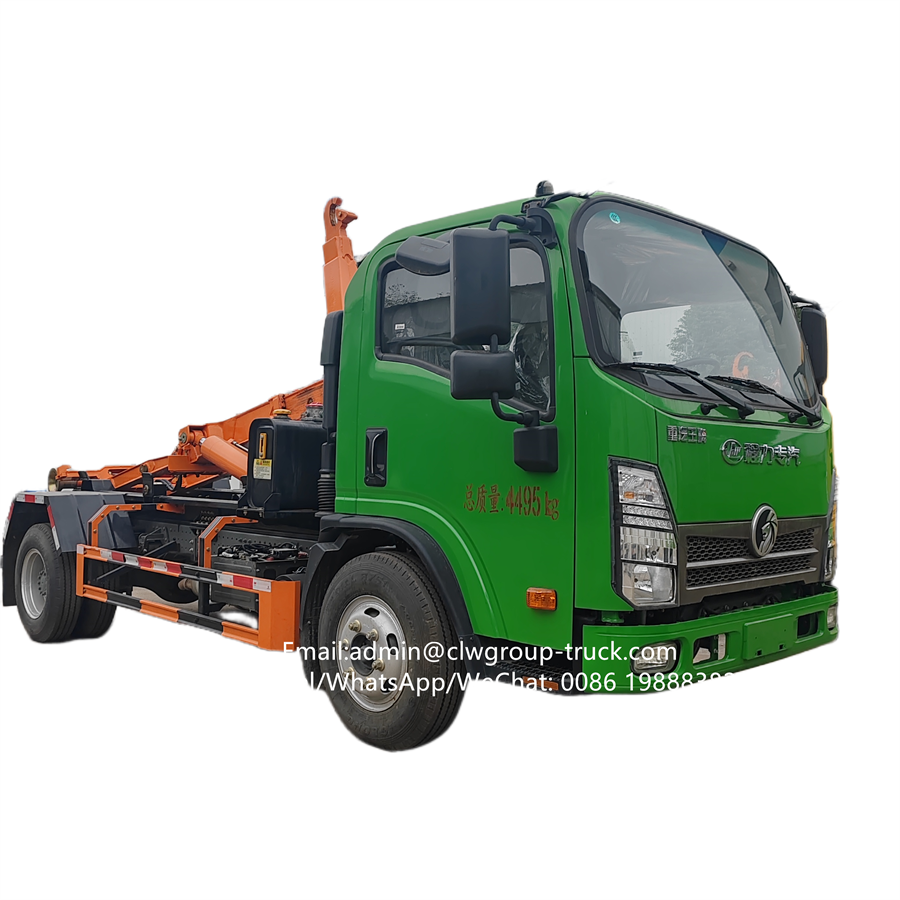

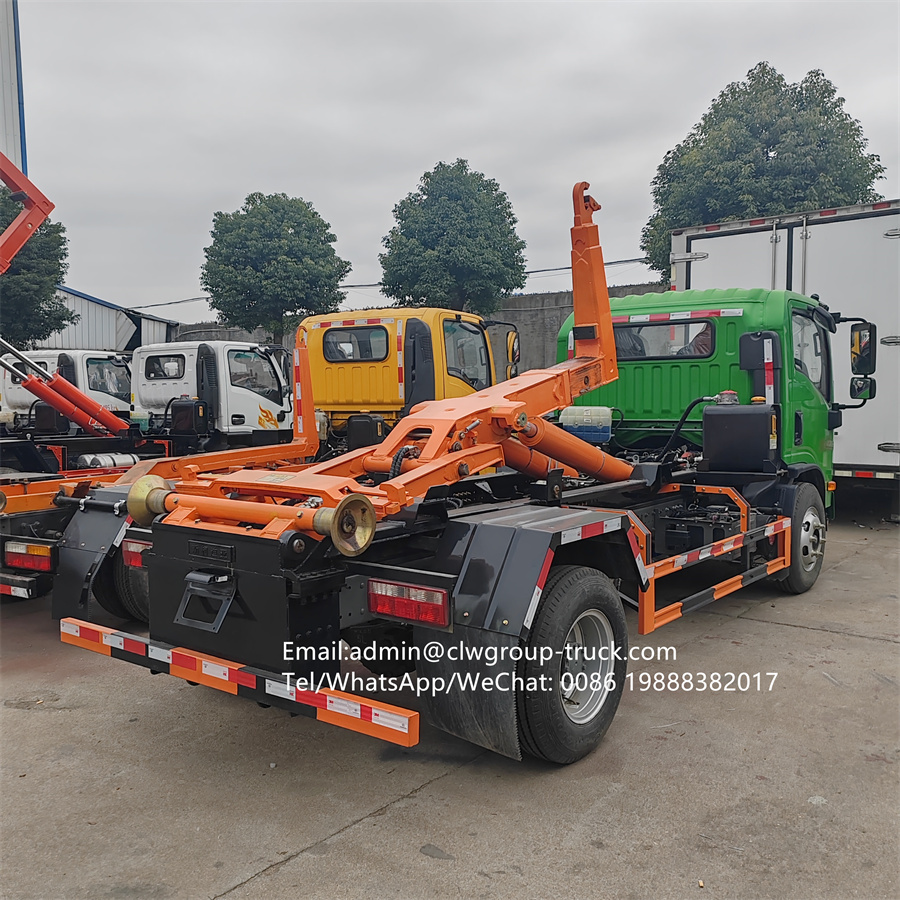

Sinotruk 4x2 4x4 trash bin hydraulic container collector 5ton hooklift garbage truck

We divide garbage trucks into compressed garbage trucks, swing arm garbage trucks, and hook loader garbage trucks, also known as self loading and unloading garbage trucks. One hook arm can carry multiple garbage bins back and forth, also known as a recyclable garbage collection truck.

In urban life, the hook loader garbage truck is a good helper for municipal waste and household items. At the same time, it can also be used for transporting hard shelled fruits such as palm fruit and coconut, or for transporting stones and sand materials on construction sites. It can also be used as a dump truck, and the hopper of the garbage bin is generally configured with side 4mm and bottom 5mm thickness high quality carbon steel material, or thicker garbage bins can be added according to different customer needs. The garbage bin can be designed with an open lid for easier unloading when transporting items that need to be tilted, or it can be designed with a fully sealed structure to prevent pollution and leakage, effectively preventing secondary pollution of garbage during transportation and ensuring the cleanliness and hygiene of the urban environment.

The hook loader garbage truck can choose different oil cylinders according to the lifting tonnage of the hook arm. Chengli Special Automobile Co., Ltd. adopts its own brand of hydraulic cylinders, which have smooth movement, strong bearing capacity, good sealing, load holding valve, high safety, lightweight design, optimized structure, and Yangzhou Zhongmei control system. The five piece flashlight integrated multi way valve is used, and the frame is welded with German steel grades S355MC and S460MC. The high-strength steel and well-known Italian brand plunger pump have better performance and longer service life. The paint of the hook arm adopts sandblasting, spray coating, and baking paint technology, which can achieve 5 years without rusting

Hook loader garbage trucks can be divided into light-duty garbage trucks, which are generally modified with a 4X2 light-duty chassis and can carry 3-15 tons of household waste. There are also heavy-duty chassis for 6X4 and 8X4 garbage trucks. The chassis of a 6X4 can generally be modified into a 20 ton hook arm garbage truck, or the oil cylinder can be reinforced to a maximum of 25 tons. The chassis of 8X4 can generally be modified into a 25 to 30 ton hook arm garbage truck, with a maximum lifting weight of 30 tons.

On the chassis of hook loader garbage trucks, we usually choose well-known domestic brands such as Dongfeng, Foton, Shacman, Sinotruk howo , Isuzu, Beiben, IVECO hongyan etc., especially Sinotruk and Shacman, which are particularly popular with a tonnage of around 20 tons. Isuzu's hook arm garbage trucks in Russia have also received widespread praise. Generally, African countries prefer and use hook loader garbage trucks with heavy truck chassis weighing 20 to 25 tons because their chassis is solid and durable, and there are many local repair shops for easy maintenance.

In addition, the hook loader garbage truck also has a high degree of flexibility and adaptability. It can be equipped with various auxiliary devices according to the actual needs of users, such as hydraulic flipping mechanisms, push rods, etc., to achieve multiple operating modes.

The upper arm hook of the hook loader garbage truck is made of high-strength alloy steel, with special treatment applied locally, which has strong bearing capacity and is not easily deformed. The upper arm is equipped with an induction device for safer landing. The oil cylinder adopts a well-known domestic brand, with high cost-effectiveness and reasonable matching. The key parts use imported seals, which have stable performance and reliable quality. The dual cylinder design protects the entire hydraulic system for durability. Each side of the tail is equipped with a pulley made of high-strength steel, and the rotating parts are lubricated with butter. It can provide good assistance when lifting the garbage bin. The boom is also equipped with a safety locking hook, and the oil cylinder control lock is secure, which can effectively ensure that the boom and flipping mechanism are locked together when dumping garbage, prevent hydraulic or mechanical failures caused by misoperation, eliminate safety hazards, and extend the service life of the vehicle. The operation of the hook arm garbage truck can be operated with one click inside the driver, and the operator can complete the task without getting off the car, saving time and effort. It can also be equipped with remote control and manual operation. Wireless remote control and wired button controller can meet customers' multiple control mode choices for easy operation. The control function of the multi way valve in the hydraulic system is achieved through the use of branded multi way valves, which are safe and efficient. The vehicle is also equipped with a system cooling device. When the hydraulic system oil temperature is high, the system will automatically start the cooling system, which is better suited for long-term high-temperature working environments. There are standard sewage outlets that can be connected to the fire department to discharge sewage in an orderly manner into the urban sewage network.

When choosing a hook loader garbage truck, the first thing we need to do is determine what item to pull, how much tonnage to pull, and then choose a chassis that suits us according to local policies and budgets for modification. It is important to choose an experienced and reputable factory and salesperson to complete the production and follow-up process of the vehicle. Any inquiry please feel free to contact Tel/WhatsApp/WeChat: 0086 19888382017 When choosing a vehicle, we need to proactively propose our own requirements in order to achieve worry free use in the later stage.

Chengli Special Purpose Vehicle Co., Ltd. was established in 2004 and is located in Suizhou City, Hubei Province. We are a manufacturer with 21 years of experience in the production of hook loader garbage trucks, and our products meet international ISO certification. Through years of production experience, we continuously improve our production based on different customer feedback and driving experience. From raw materials to factory, we have strict quality inspection procedures to meet quality inspection standards, ensure product quality, replace matching parts, and provide 24-hour after-sales service. We have rich production experience, advanced technical strength, and integrate technical production and research and development. Our products are sold directly to the manufacturer at a minimum price, with original factory quality assurance. There is no middleman to make a profit. We have confidence and ability to manufacture garbage trucks that meet customer needs.

The hook-arm garbage truck is composed of a special device and a garbage box that are equipped with a series of dumping mechanisms of the garbage box hook-arm on the basis of the truck chassis.

The hook-arm garbage truck adopts high-tech design and can swing the hook arm. One car can carry multiple large compartments, which is convenient for loading and unloading, realizes the secondary hoisting of the compartment and makes the mechanism the most labor-saving. manpower and other advantages. Hook-arm garbage trucks can be equipped with several garbage transfer boxes based on user requirements. The transfer box can be used as a simple, beautiful and environmentally friendly waste transfer station, which maximizes the efficiency of the vehicle.
