The water truck is also known as water sprinkler, the multi-function sprinkler, the landscaping sprinkler, the water sprinkler truck, and the water spraying truck.
The water truck is suitable for all kinds of road washing, trees, green belts, lawn greening, construction of roads, factories and mines, and high-altitude buildings. It has the functions of water spraying, dust pressure, high and low spraying, pesticide spraying, guardrail flushing, etc. It also has functions such as water transportation, drainage, and emergency fire fighting.
According to the purpose, it is divided into water sprinkler truck,watering truck, greening sprinkler, multi-function sprinkler, truck-mounted sprinkler,water delivery truck, water transport truck sprinkler, and fire sprinkler.
Water truck丨water spraying truck performance characteristics:
1. Self-priming height: ≤7m, sprinkler width: ≥20m, range: ≥28m; it can be adjusted into a column shape with a range of ≥28m; it can also be adjusted into a fog shape with a range of ≥5m.
2. It is used in urban roads, large factories, gardens and other units to clean road surfaces, sanitation, dust prevention, watering, spraying pesticides, etc., to achieve the effect of beautifying the environment.
3. For temporary emergency fire sprinkler, each water sprinkler truck is equipped with a fire interface.
4. Front dash rear spraying, with duck-shaped nozzle or round head flushing nozzle at the front, cylindrical sprinkler nozzle or shower head nozzle at the back, and a working platform at the back, equipped with high-pressure water cannon. The rear can also be equipped with 8 nozzles (optional) water jets are generally used for street washing.
Tanks and accessories on water trucks
Material: The tank body adopts Q235, the thickness of the partition plate is 3mm, the thickness of the tank body carbon steel is 4mm, and the thickness of the head is 5mm.
Cast aluminum pipe fittings: aluminum alloy elbow tee, aluminum alloy flange tee, aluminum alloy pump outlet tee, aluminum alloy pump inlet straight, mold one-time die-casting, no welds, avoid water leakage, standardized design, mutual Good changeability, easy maintenance and replacement, aluminum alloy material is lighter, beautiful and practical, and improves product quality. Other accessories: aluminum alloy rear sprinkler, stainless steel ball valve, S-type new high-pressure water cannon
Water Sprinkler truck丨water sprinkler truck optional configuration:
1. Pneumatic ball valve integrated control can be selected for front flushing, rear spraying and side spraying, and stainless steel can be selected for greening anti-aircraft guns;
2. Hangzhou Weilong sprinkler pump can be optional, and electric sprinkler can be installed at the front of the cab;
3. The rear of the tank can be equipped with arrow indicators and long warning lights, and the rear can be equipped with an arc spray device;
4. Snow removal equipment, snow removal shovel, rolling sweep, guardrail cleaning machine, etc. can be installed;
5. It can be used as fire sprinkler and installed with rolling shutter;
6. A 30-120m air-supplied sprayer can be installed.
Common accessories for water trucks: water truck pump, three-way aluminum alloy valve, fire-fighting high-pressure water gun, pneumatic valve, butterfly valve, music horn, universal duckbill, high-pressure water gun, air cylinder
Water Sprinkler truck 丨 Water truck construction process:
1. Chassis options:
The chassis of the sanitation sprinkler is driven by the second-class chassis, and adopts the second-class chassis of domestic Dongfeng,FAW, Foton,JAC, Sinotruk, SHACMAN, Beiben, Isuzu and JMC
2. Piping system:

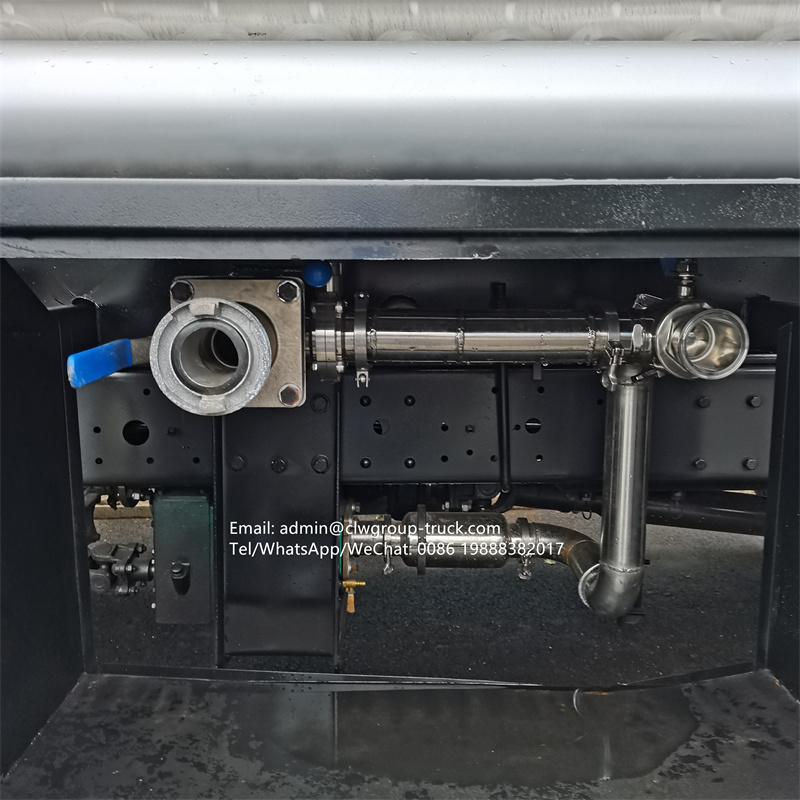

The sanitation sprinkler is composed of pipelines, four-position three-way ball valve, straight-through ball valve, filter screen, and water outlet (front flushing, rear spraying, side spraying; high-position side shower; rear working platform, with green sprinkler artillery).
3. Tank process:
The automatic assembly line production process is divided into domestic production processes such as blanking, automatic welding of panels, head spinning, and one-time roll forming of tanks. The tank material is mostly made of carbon steel plate. In the case of special purposes, 304 stainless steel can also be used according to customer needs.
4. Operating system: The sanitation sprinkler works by the engine driving the gearbox, the power take-off installed on the gearbox drives the sprinkler pump, the sprinkler pump generates power, and the liquid inside the tank is sprayed out through the pipe network. Working range: Self-priming height: ≥7m, sprinkler width: ≥14m, range: ≥28m; it can be adjusted into a column, and the range is ≥28m; it can also be adjusted into a fog, with a range of ≥5m,
5. Power take-off: The sprinkler is powered by the main engine and is operated pneumatically. The operation switch is pulled back, the power take-off tooth enters the meshing position, and the water pump is driven to work through the transmission shaft. The switch returns to the front, and the water pump stops working. The power take-off is a device installed on the box side of the gearbox of the sprinkler. Generally, the automobile gearbox has a mounting port. The installed power take-off can transmit the power through the rotation of the regular gear of the gearbox, and then The power is transmitted to the drum and pressurizing pump of the mixer through the transmission components and the controller.
6. Sprinkler pump: equipped with Hangzhou Weilong high-power sprinkler pump, with fire joint, with self-flow valve, with self-priming function optional configuration of sprinkler: can be equipped with spray tray, medicine pump, anti-corrosion and anti-rust in the tank, and more Azimuth inlet and outlet water joints, solenoid valves, pneumatic valves and other facilities to meet the needs of different users.
Water Sprinkler truck丨 Scope of application of water truck :
Community property - road watering, landscape belt maintenance, lawn watering, etc.
Municipal sanitation - road flushing, cooling and dust pressure, green belt maintenance, etc.
Landscaping - nursery watering, plant watering, landscaping spraying, etc.
Construction sites, coal yards - spray dust, suppress dust, transport water for washing, etc.
Forest fire - fire water transport, etc.
Bathhouse center - heat preservation and water transportation, hot spring water transportation, etc.
