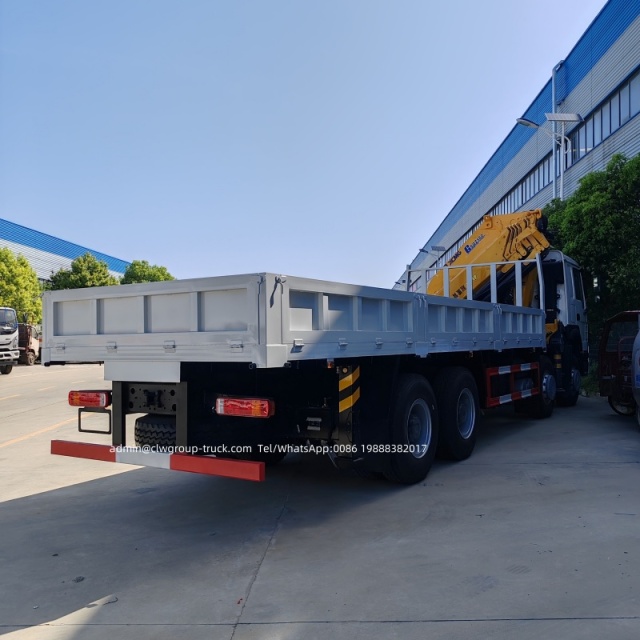

| Vehicle General | Overall dimension | 12000*2550*3950 mm |
| Gross /Kerb weight | 31000/20000 kgs | |
| Chassis | Brand | Sinotruk howo |
| Cabin | Single ,left hand drive or right hand drive | |
| Engine model/power | Weichai engine 350hp 380hp 400hp | |
| Emission standard | Euro III or Euro IV Euro V or VI | |
| Displacement | 8.8 L | |
| Transmission | 10 forwards 2 reverse | |
| Axle weight | front axle 9.5 tons rear axle 16 tons | |
| Wheelbase | 2100+4575+1400 mm | |
| Brake system | Air Brake | |
| tire | 12.00R20 12 tires and 1 spare tire | |
| Max speed | 90 km/h | |
| Crane | Capacity | 14tons 16tons knuckle crane |
| Max lifting height | 14.8 m/17.5 m | |
| Max working radius | 12.3 m/15.3 m | |
| Crane weight | 5100 /5800kgs | |
| Rotation | 360 degree rotation | |
| Lorry box | Dimension | 8400*2400*500 mm |

We are professional manufacturers to do the special vehicles . We are supply all brands of special truck , north benz(beiben) , Faw , Foton , Shaanxi ,Sinotruck , Jac , Jmc , Isuzu ,Dongfeng all available .
The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
We can provide LHD (left hand drive) or RHD (right hand drive) vehicles
1 telescopic boom or knuckle boom all available
2 crane brand :CLW,XCMG ,UNIC, SANY or others
3 Crane capacity : 2 ton ,3.2 ton ,4 ton ,5 ton ,6.3 ton ,7 ton ,8 ton ,10 ton ,12 ton ,14 ton ,16 ton ,20 ton ,25 ton ,30 ton ,40 ton ,60 ton ,70 ton ,80 ton ,100 ton ,120 ton ,150 ton etc

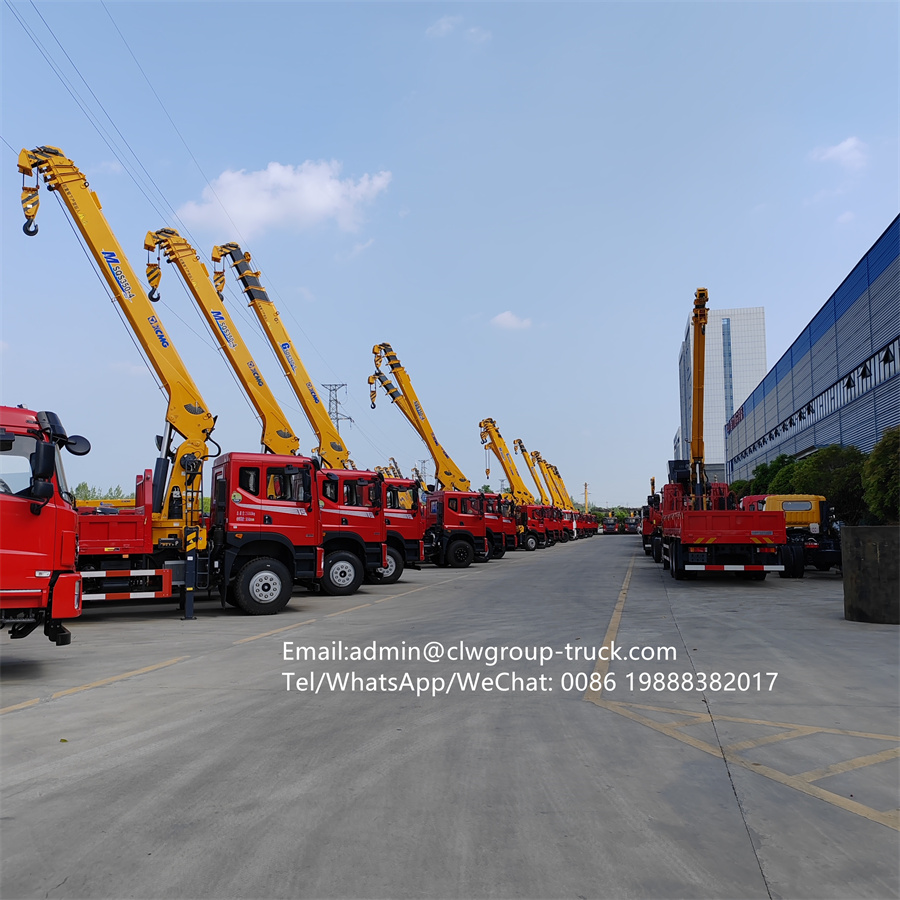

--truck mounted crane(also called Truck with Crane, Truck Crane,boom truck ) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone etc.

According to crane type,there are telescopic/straight arm and knuckle/folding arm truck mounted crane


Truck mounted crane hydraulic control the rear body could be lorry box , tipper , flatbed etc .
We can custom truck as customer's request


If heavy duty truck mounted crane the rear legs equipped to make it more safety when operation
